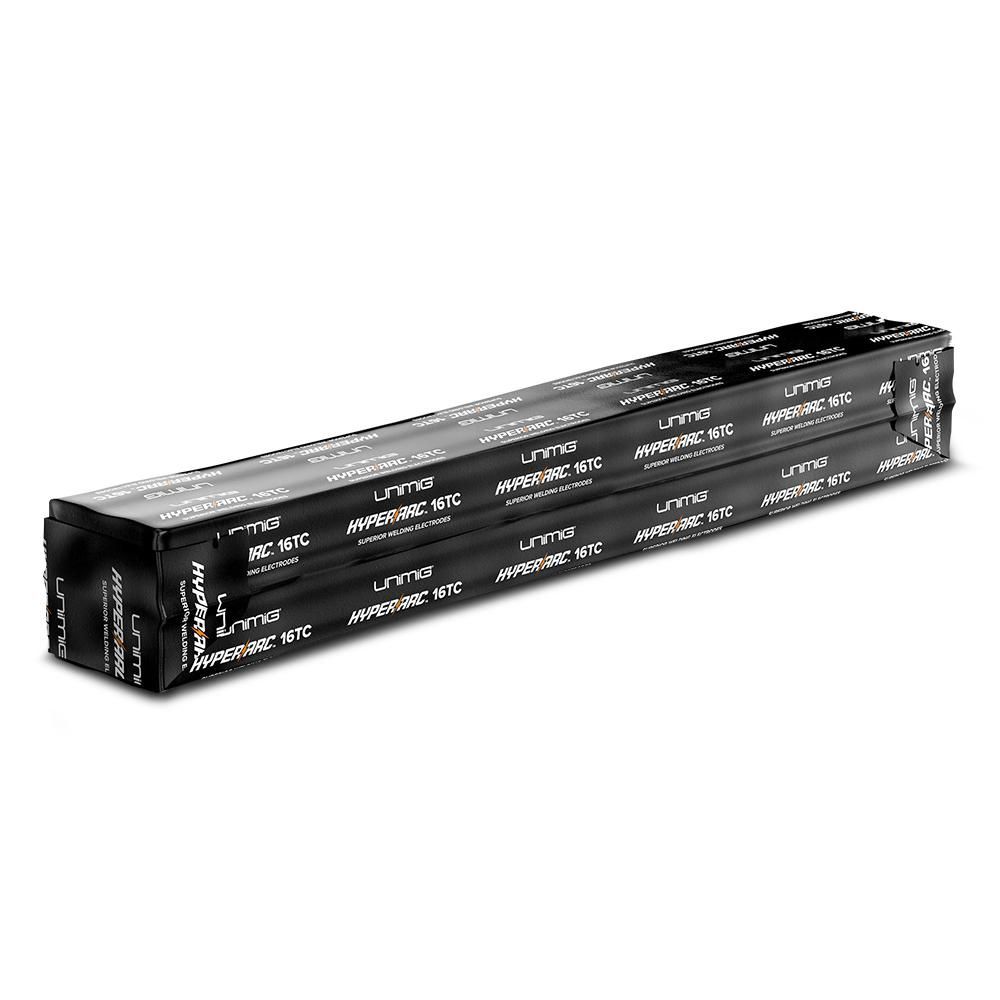

UNIMIG U63008 2.6mm 2kg HYPERARC 16TC 7016 Twin Coated Low Hydrogen Electrodes

UNIMIG U63008 2.6mm 2kg HYPERARC 16TC 7016 Twin Coated Low Hydrogen Electrodes

The HYPERARC 16TC is a Twin Coated 7016 Low Hydrogen electrode. With its all positional capabilities (except vertical down) it is the optimum choice when high quality welding is required.

Features:

• Excellent arc stability
• High penetration
• Less spatter and easy releasing slag
• Concentrated arc

Applications:

• Structural Steel Fabrication
• Pressure Vessel welding
• Pipe welding
• Repair work for Agriculture and machinery
• Earthmoving equipment repairs
• Layering, “Buttering”

Specifications:

• Yield Stress: 470 MPa
• Tensile Strength: 583 MPa
• Elongation: 29%
• Impact Test: 93J @ -20°C
• Recommended Current: AC & DC+
• Current Range: 50-90A
• Classification:
  • AS/NZS ISO 4855: B E4916 A U H10
  • AWS A5.1: E7016
• Size: 2.6mm
• Length: 350mm
• Weight: 2kg
