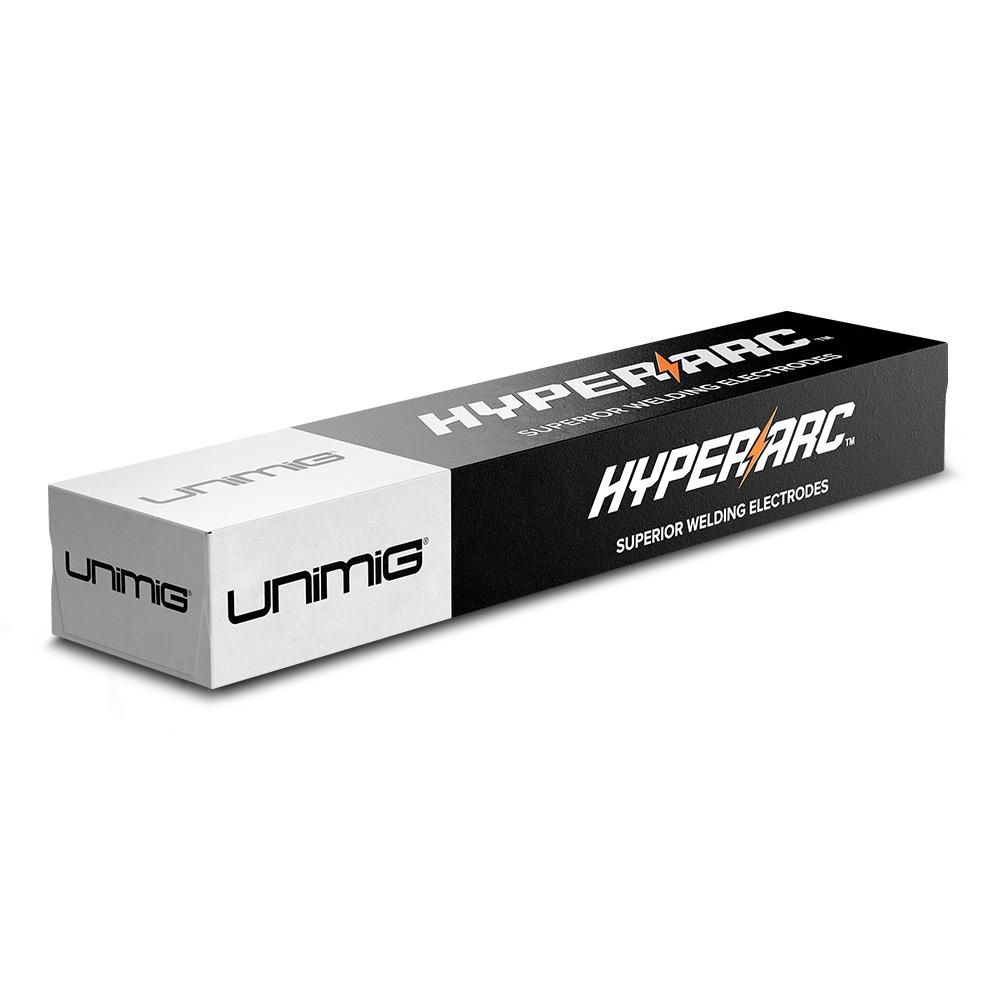

UNIMIG U63003 2.6mm 5kg HYPERARC 6013 General Purpose Electrode

UNIMIG U63003 2.6mm 5kg HYPERARC 6013 General Purpose Electrode

The HYPERARC 6013 is a General Purpose Electrode suitable for welding all mild and low alloy steels in all positions. Easy slag removal and easy arc striking make the HYPERARC 6013 the right choice for multiple applications.

Features:

• All positional
• High penetration and easy direction
• Easy slag removal
• Easy arc striking

Applications:

• General mild steel fabrication work
• Repair work, fencing, gates, and balustrading
• Agricultural machinery
• Structural and general workshop use

Specifications:

• Yield Stress: 454 MPa
• Tensile Strength: 535 MPa
• Elongation: 27%
• Impact Test: 53J @ 0°C
• Recommended Current: AC & DC+
• Current Range: 50-90A
• Classification:
  • AS/NZS 4855: B E4313A
  • AWS A5.1: E6013
• Size: 2.6mm
• Length: 350mm
• Weight: 5kg
