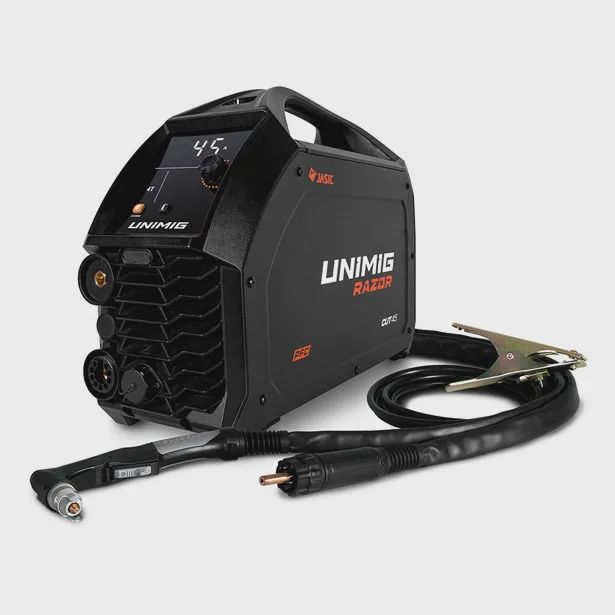

The RAZOR CUT 45 is the perfect plasma cutter for the professional who wants a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR CUT 45 boasts some serious cutting power with 16mm clean cut and 25mm severance.

• RAZOR CUT 45 Plasma Cutter
• 6m SC80 Plasma Torch
• 4m 300A Earth Clamp
• Air Regulator
• Operating Manual
• HD Backlit Interface
• Power Factor Correction (PFC)
• Smart Fan
• CNC Connectivity
• Perforated Cut Mode
• Pilot Arc Start
• 2T/4T Trigger Modes

• HD Backlit Interface
  This next generation interface panel is bright and easy to read in any environment.
• PILOT ARC START
  Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
• Power Factor Correction
  PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, and PFC is also designed to be generator friendly.

Specifications

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15 Amp
• Ieff (A): 15
• Protection Class: Ip23S
• Insulation Class: H
• Dinse Connector: 10/25
• Standard: As/Nzs 60974.1
• Warranty (Years): 5
• Plasma Cut Current Range: 20-45A
• Plasma Cut Duty Cycle @ 40°C : 25% @ 45A, 60% @ 30A, 100% @ 20A
• Mild Steel Cut Thickness: 16mm
• Mild Steel Severance Thickness: 20mm
• Aluminium Cut Thickness: 8mm
• Aluminium Severance Thickness: 10mm
• Stainless Steel Cut Thickness: 8mm
• Stainless Steel Severance Thickness: 10mm
• Weight (Kg): 10

Warranty

UNIMIG is pleased to offer a 5-year warranty on all the RAZOR CUT 45 U14006K.

UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well.UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.

*Please note warranty only applies to the power source only
