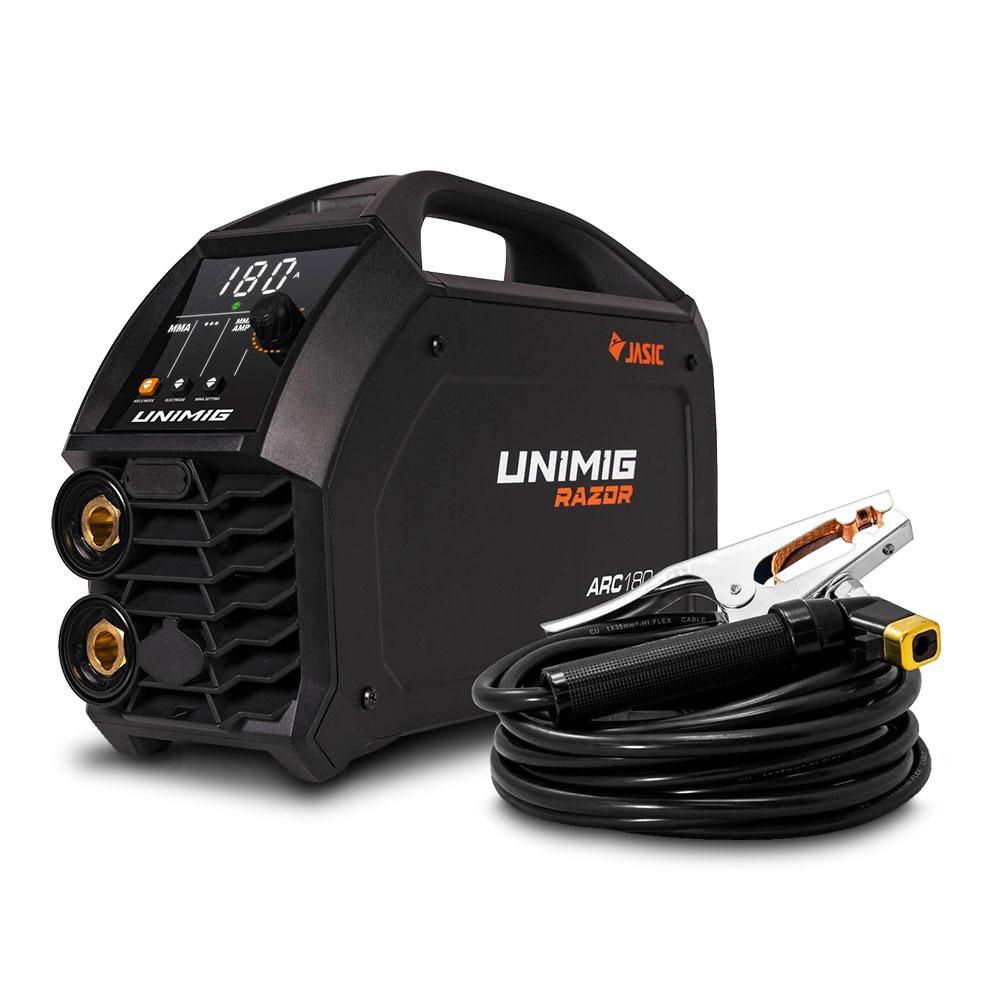

UNIMIG U13005 Razor Arc 180 Stick & TIG Welder

UNIMIG U13005 Razor Arc 180 Stick & TIG Welder

Features:

• HD Backlit Interface: This next generation interface panel is bright and easy to read in any environment
• Advanced MMA Features for improved weld quality and ease of use
• Anti-Stick technology
• Adjustable arc force and hot start functionality
• DC Lift Arc TIG: Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode
• 10A Plug: Can be used in any domestic outlet
• Smart Fan: Diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine
• Lightweight & Portable: Weighing just 5.8kg, the RAZOR ARC 180 is ready to go anywhere you need it

Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15 Amp
• Ieff (A): 14.7
• Rated Output: 20A/20.8V - 180A/27.2V
• No Load Voltage: 78V
• Protection Class: IP23S
• Insulation Class: H
• Minimum Generator: 10kVA
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• MMA Weld Material Type: Mild Steel, Stainless Steel, Cast Iron
• TIG Weld Material Type: Mild Steel, Stainless Steel, Copper, Silicon Bronze
• STICK Specifications:
  • STICK Welding Current Range: 20-180A
  • STICK Duty Cycle @ 40°C:
    • 20% @ 180A
    • 60% @ 104A
    • 100% @ 81A
  • STICK Electrode Range 2.5-4.0mm
  • STICK Welding Thickness Range 2-10mm
• TIG Specifications:
  • TIG Function Type: DC Lift Arc
  • TIG Welding Current Range: 10-180A
  • TIG Duty Cycle @ 40°C
    • 25% @ 180A
    • 60% @ 116A
    • 100% @ 90A
  • TIG Welding Thickness Range: 1-6mm
• Dimensions (L x W x H): 370mm x 125mm x 255mm
• Weight: 5.8kg

Warranty:

• 5 Years Warranty Covered by UNIMIG
