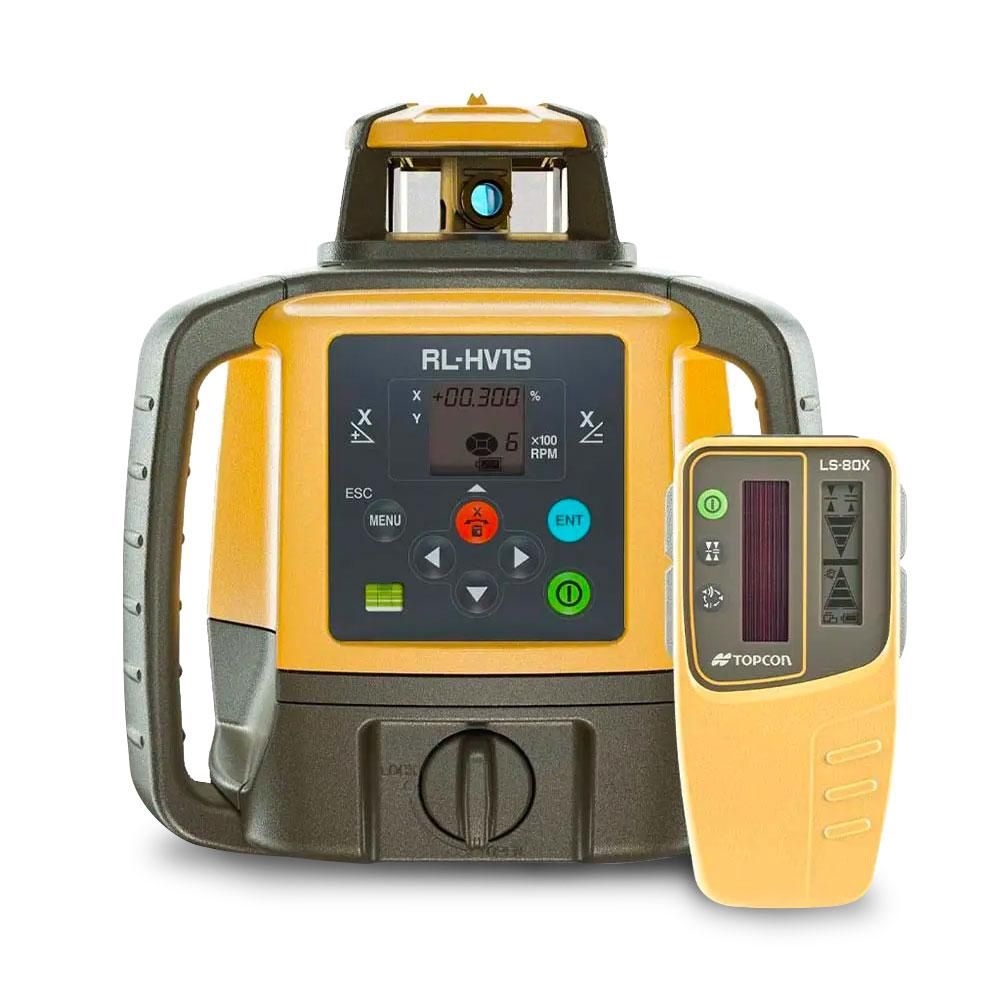

Topcon RL-HV1S (1051612-08) Single Grade Rotating Laser with Dry Battery & LS-80X Receiver

Topcon RL-HV1S (1051612-08) Single Grade Rotating Laser with Dry Battery & LS-80X Receiver

The RL-HV1S single-grade laser from Topcon is built for ultimate durability, designed to be rugged and compact, allowing you to get twice the laser & Bluetoooth pairing for a great price. Designed for a wide variety of applications,  it can be used for horizontal, sloping and vertical laser applications. Slopes up to ±15% can be used in the X axis. Turn it on its side and use it for layout and alignment applications.

The RL-HV1S excels in long range operation. Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover a 800m (diameter) jobsite. As well as remote pairing and operation from your smart phone (Horizontal operation 100m, Vertical Operation 20m).

The RL-HV2S is “jobsite tough” and with its IP66 rating, the unit can withstand dust, a sudden shower and even torrential rainfall. Topcon stands behind this reliable and accurate laser with a 5 year warranty.

Includes:

• Topcon RL-HV1S Single Grade Laser
• Laser Manager App
• Standard LS-80X Receiver
• Sensor Holder (Holder-6)
• 4x D-Cell Alkaline Batteries
• Carrying Case

Features:

• Long operating range of up to 800m (diameter)
• Accuracy of ±10 Arc Seconds and Single Grade Range of ±15%
• Horizontal/Vertical Self-leveling within ±5 degrees
• Features Laser Manager App for Bluetooth Connectivity
• Rotational Speeds: 300, 600 RPM (selectable)
• All-weather dependability, with a rating of IP66, it can withstand dust and even torrential rainfall
• Battery life up to 120 hours

Specifications:

• Battery life (with Alkaline batteries): Up to 120 hours
• Power source: Drycell Alkaline
• Percentage Grade: ±15%
• Accuracy Grade: ±10 arc seconds
• Protection class: IP66 dustproof and water resistant
• Adjustable Rotating Speed: 300, 600 RPM (selectable)
• Remote Control Operating: via Bluetooth (Laser Manager App)
• Opertating Temperature: -20 to 50ºC

Warranty:

• 5 Years Warranty Covered by Topcon
