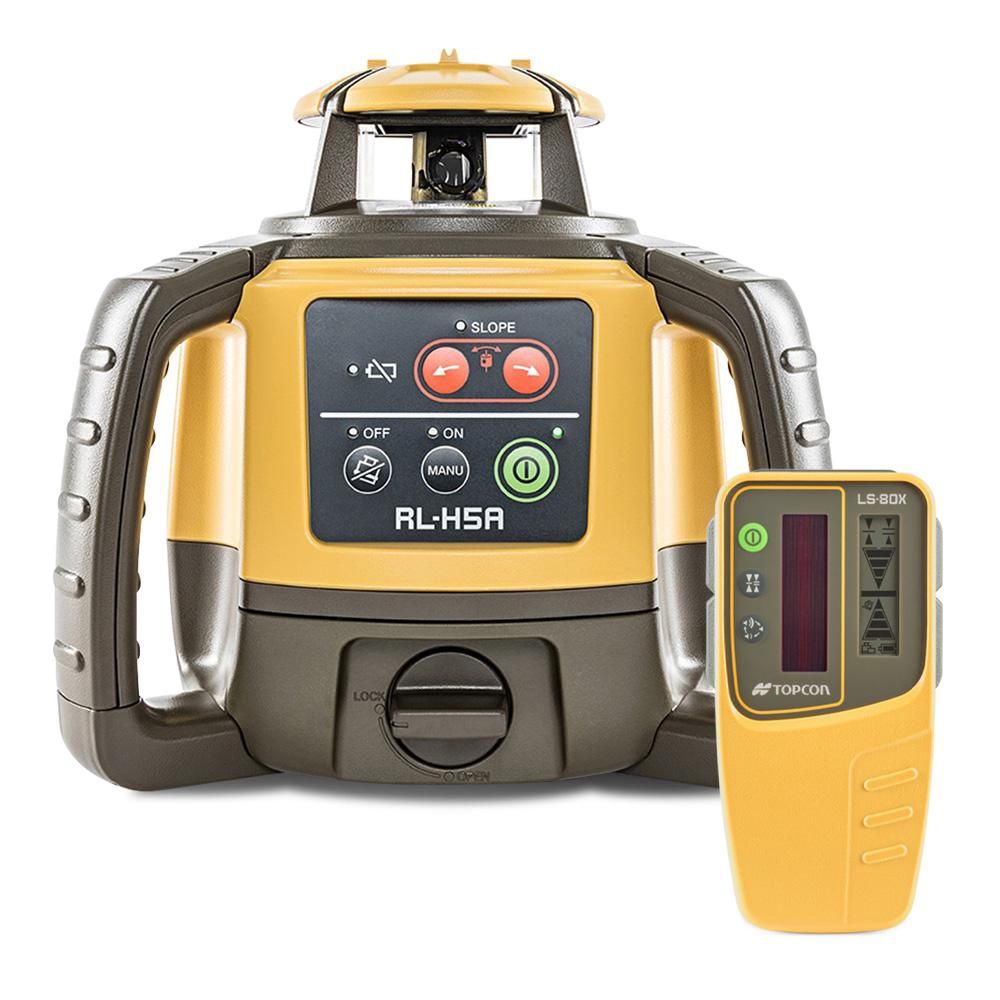

Topcon RL-H5A (1021200-45) Red Beam Self-Leveling Rotary Grade Laser Level Kit with LS-80X Receiver

Topcon RL-H5A (1021200-45) Red Beam Self-Leveling Rotary Grade Laser Level Kit with LS-80X Receiver

SKU RL-H5A.
$1 945.00
Sold out
4 payments of $486.25 with
Learn more
Price incl. GST (10%) $176.82
Sold out
Product Details
Brand: TOPCON

Topcon RL-H5A (1021200-45) Red Beam Self-Leveling Rotary Grade Laser Level Kit with LS-80X Receiver

Designed for a wide variety of applications, the new RL-H5 series are the next generation of rotating lasers from Australia’s Number 1 rotating laser brand Topcon. The new RL-H5A is the replacement for Topcon's market leading RL-H4C. It can be used for horizontal and sloping laser applications. Slopes up to ±5% can be used in either the X or Y axis.  Grading, excavating and general construction projects are all perfect applications for the RL-H5A. With the added “Slope Matching” feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the RL-H5A a great match with any machine-mounted laser sensor. The RL-H5A's popularity lies in its ease of use. With electronic self-levelling, you press the power button and begin levelling work in seconds. If the RL-H5A gets disturbed on the job, it relevels itself automatically. The self-levelling motors are accurate to ±10 arc seconds. The RL-H5A excels in long-range operation. Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover a 800m (diameter) jobsite.With efficient power usage, the RL-H5A has a long battery life. The unit also gives you the option of two forms of power, 100 hours of continuous usage with D cell (4 x) batteries (included), or 60 hours with the optional rechargeable (Ni-MH) battery pack. The RL-H5A is “jobsite tough” and with its IP66 rating, the unit can withstand dust, a sudden shower and even torrential rainfall. Topcon stands behind this reliable and accurate laser with a 5-year guarantee which is the best factory warranty in the industry.

Includes:

  • Topcon RL-H5A Rotating Laser Level
  • Topcon LS-80X Receiver
  • Topcon Receiver Clamp
  • 4 x D-Cell Alkaline Batteries
  • Carry Case
  • Operator Manual
  • Australian Calibration Certificate

Specifications:

  • Accuracy: H: ±10 arc seconds
  • Self-Levelling Range: Horizontal ±5°
  • Working Area: 800m
  • Rotation Speed: 600 rpm
  • Dust/Water Rating: IP66
  • Operating Time: Alkaline (100 hours) ; Ni-MH (60 hours)
  • Operating Temperature: -20°C to 50°C

Warranty:

  • 5 years Warranty covered by Topcon
