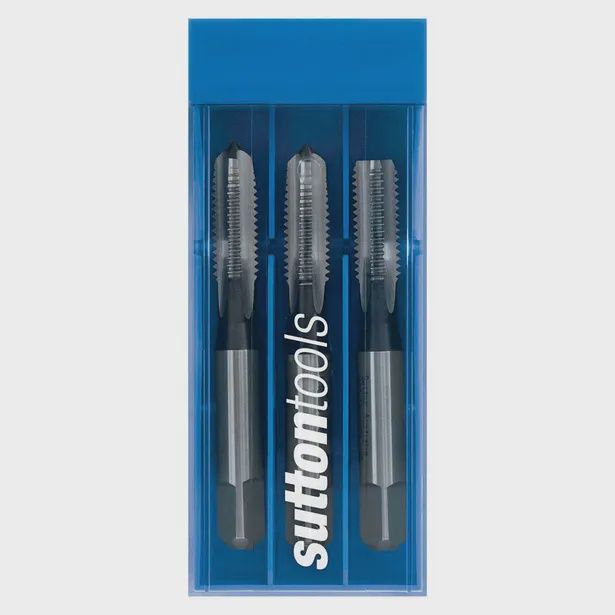

SUTTON T9011000 M10 x 1.5 Metric HSS Hand Tap Set - 3 Piece

• General purpose use
• Suitable for materials up to 1000N/mm2
• Suitable for both hand and machine operations
• Depths up to approx. 1 x d1

Specifications

• Designation: N
• Material: HSS
• Finish: Brt
• Max Cut Depth: 1xD
• Shank Form: A
• Standard: ISO529
• Thread Form: M
• Nut Tolerance: ISO 2 / 6H
• Lead: Set
• Length l1 (mm): 80
• Length l2 (mm): 24
• Diameter d2 (mm): 10
• sq: 8
• Length l4 (mm): 11
• z: 4
• Pitch: 1.50
