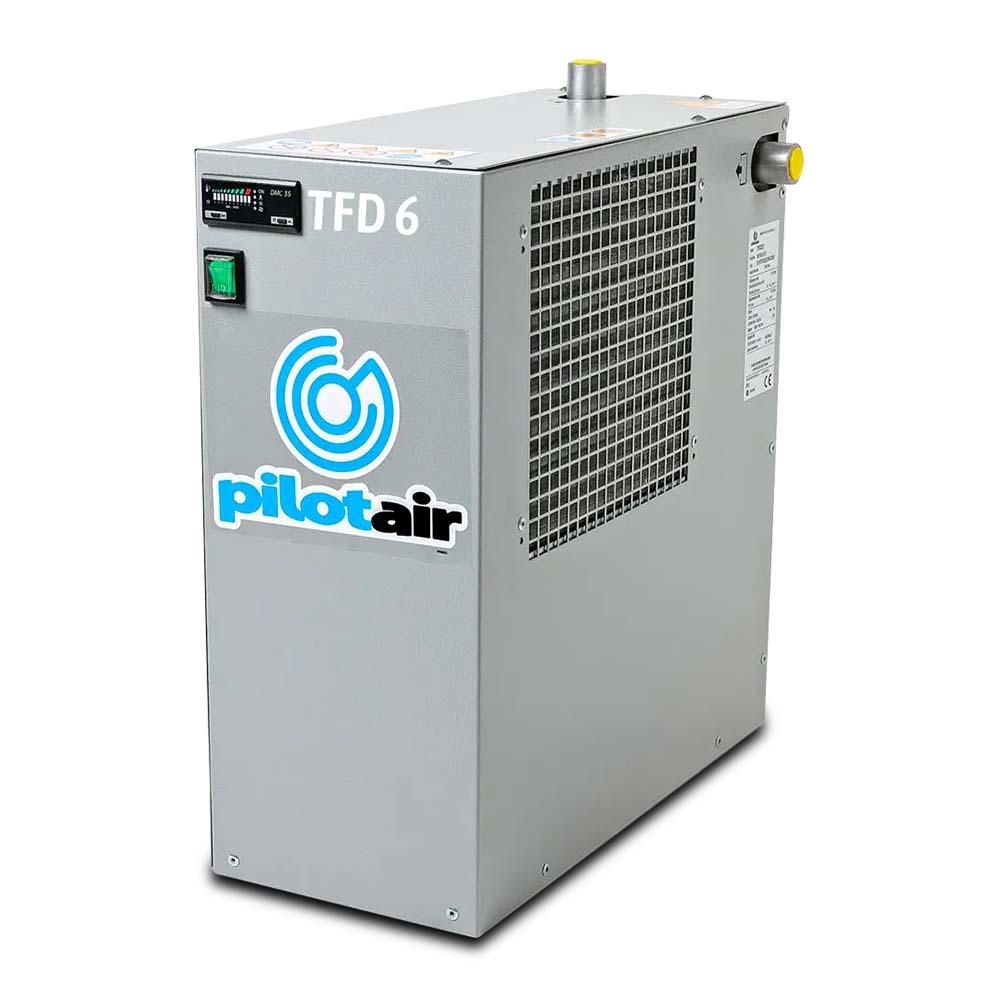

Pilot Air TFD6 (QTYPI*NS167172*05) 240V 9.9L/sec Refrigerated Compressed Air Dryer

Pilot Air TFD6 (QTYPI*NS167172*05) 240V 9.9L/sec Refrigerated Compressed Air Dryer

Pilot Air’s TFD Range of Refrigerated Air Dryers is compact, cost effective and is rated for Australian conditions with flow rates based on an ambient temperature of 35°c.

Features:

• Upgraded electronic control panel
• Hot gas by-pass valve
• Timed Condensate drain
• Generous sizing of the condenser ensures maximum performance of the refrigerant circuit
• Running costs are reduced thanks to the efficient ALU-DRY heat exchanger, high efficiency compressors

Specifications:

• Flow Rate 9.9 L/Sec (21 CFM)
• Voltage: 240V
• Port Size: 1/2" BSP F
• Working Pressure: 16 Bar
• Dimensions: 507mm x 226mm x 532mm
• Weight: 45kg
