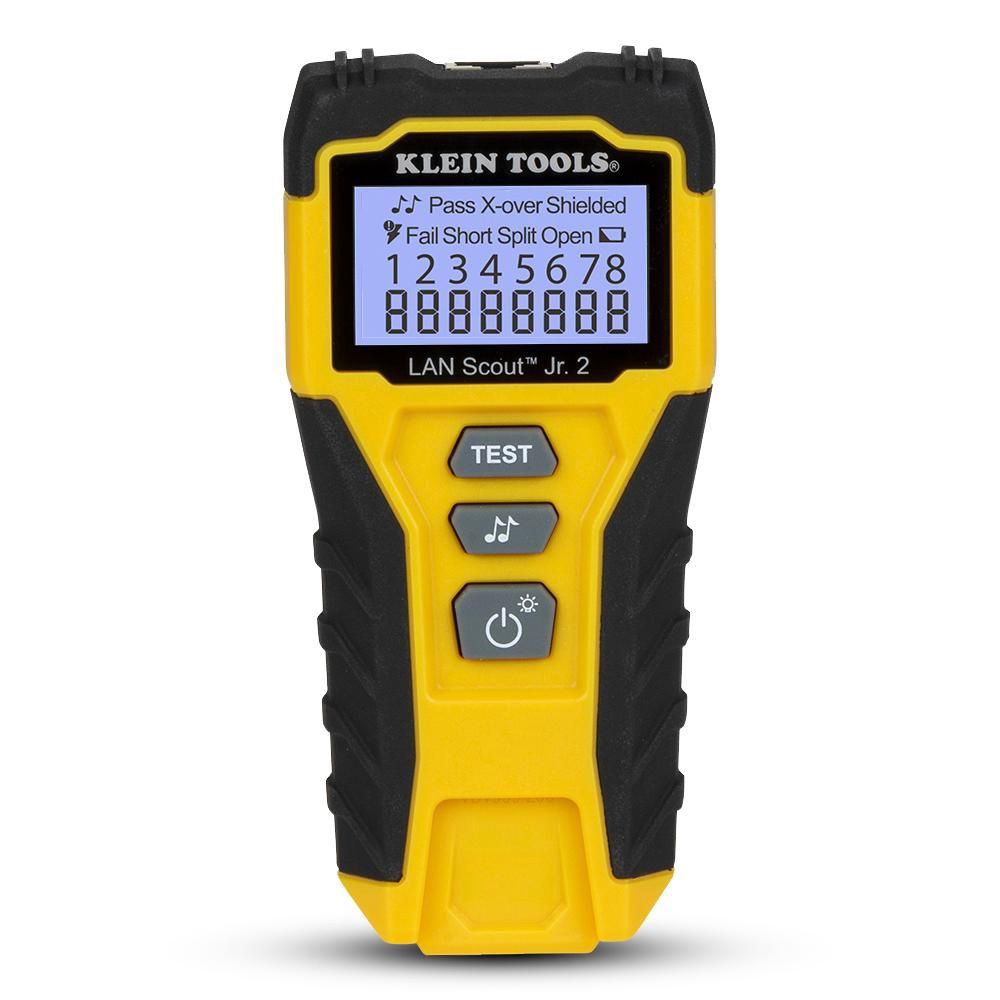

Klein A-VDV526-200 LAN Scout Jr. 2 Cable Tester

Klein A-VDV526-200 LAN Scout Jr. 2 Cable Tester

The LAN Scout Jr. 2 Cable Tester tests installed or loose data (CAT 5e, CAT 6/6A) cables terminated with RJ45 connectors. It also, tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface.

Includes:

• 1 x Remote
• 2 x AAA Alkaline Batteries

Features:

• Cable tester for data (RJ45) terminated cables and patch cords
• Large backlit LCD for low lit areas displays pin to pin wiremap results
• Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
• Intuitive user interface features three buttons with simple, easy-to-identify test responses
• Tone on single wire, wire pair or all 8 conductor wires
• Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
• Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
• Soft, slip-resistant, rugged overmold for easy gripping and durability

Applications:

• Cable Testing

Specifications:

• Cable Type: Shielded or Unshielded; Cat7, Cat6/6A, Cat5E, Cat3
• Material: Plastic and Stamped Metal
• Test-n-Map ID Remotes: 1
• Location ID: No
• Batteries: 2 × AAA Alkaline
• Battery Life: Active: 80 hr; Standby: 3 yr.
• Drop Protection: 2' (0.6 m)
• Supported Remotes: (1) Self-Storing
• Connection & Adapter Types: RJ45
• Display: LCD
• Multiple Style Tone Generator: Yes
• Faults Detected: Pass, Miswire, Open-Fault, Short-Fault, Split Pair and Shield
• Test & Measure Types: Data, RJ45
• Dimensions (L x W x H): 130mm x 64mm x 25mm
• Weight: 0.12kg

Warranty:

• 12 Month Warranty Covered by Klein
