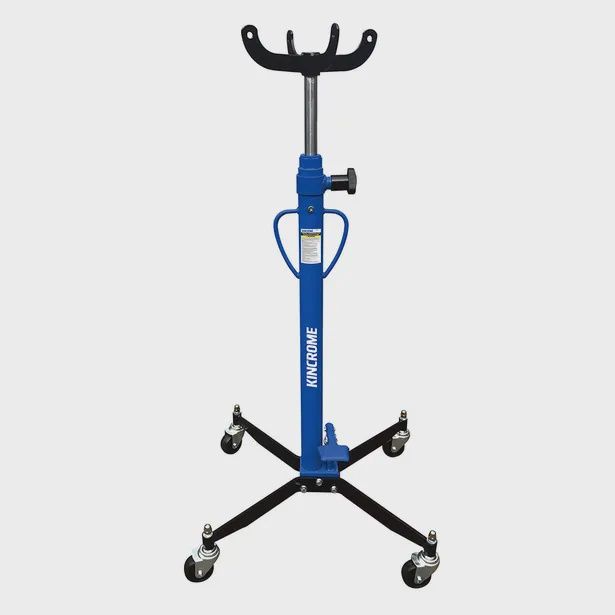

KINCROME K12120 500KG Vertical Transmission Stand

The Kincrome 500kg Vertical Transmission Jack is designed predominantly as a support tool when installing and removing transmissions, featuring a hydraulic foot pedal system with smooth lift and descent.

Built to accommodate both large and small transmissions, this unit is ideal for use with FWD, RWD and 4WD cars, offering a wide range of versatility.

The wide base, 4-leg design offers safety, security and stability when supporting the removal and installation of transmissions. With smooth nylon castors it is safe and easy to manoeuvre around the workshop.

Kincrome Transmission Jacks incorporate high-quality seals, materials and design to ensure that they can stand up to professional use.

• Manufactured to exacting standards
• Hydraulic foot pedal lift
• Suitable for general workshop applications
• Features Dead Man’s Handle for added safety
• Can be fitted with drain pans

Specifications

• Rated Capacity: 500kg
• Height Lowered: 1,125mm
• Height Raised: 1,940mm
• Lift Height: 815mm
• Product Dimensions: 590 x 600 x 1,140mm
• Saddle Size: 200 x 340mm
